Description

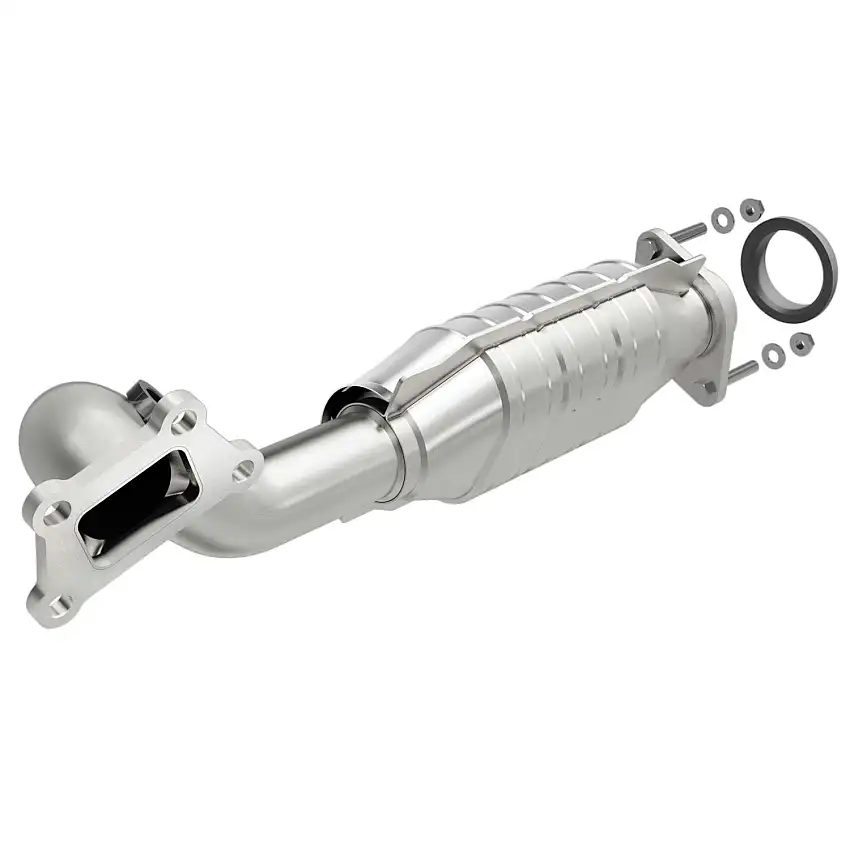

Magnaflow OEM Grade Manifold Catalytic ConverterKeep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Manifold Catalytic Converter 51547. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow’s state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Manifold Catalytic Converter is designed to fit the 2010-2014 Cadillac CTS 3.0L & 2012-2019 Cadillac CTS 3.6L. MagnaFlow 51547 includes (2) Nuts, (1) Donut Gasket, (2) Bolts, (2) Flat Washers, (1) Flange Gasket and interchanges with OE parts 20943056, 22882837. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
- High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Simplifies installation with essential gaskets and hardware being included in the box
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Durable 308 stainless steel MIG welds
Information:
Not legal for sale or installation in California, Colorado or New York.
Application Summary:
| Year | Make/Model |
|---|---|
| 2010-2019 | Cadillac CTS |
| Attributes | |
| Air Tube Adaptable | No |
| Anticipated Ship Out Time | Approximately 1-2 Days |
| ASIN | B00FG991LO |
| Body Length | 12.000 in. |
| Body Length (in.) | 12 |
| Body Material | Stainless Steel |
| Body Type | Clam-Shell |
| Body Width | 6.000 in. |
| Body Width (in.) | 6 |
| California Air Resources Board (CARB) Certified | No |
| CARB Compliant | No |
| CARB Executive Order Number | Not Applicable, Not Applicable |
| CAT Converter Air Tube Adapter | Not Air Tube Kit Adaptable |
| CAT Converter Configuration | Direct-Fit |
| Catalytic Converter Air Tube Adapter | Not Air Tube Kit Adaptable |
| Catalytic Converter Body Material | Stainless |
| Catalytic Converter Configuration | Direct-Fit |
| Catalytic Converter Format | Pre-Catalytic Converter and Main Catalytic Converter |
| Catalytic Converter Inlet Diameter | 2.5 |
| Catalytic Converter Length | 12 |
| Catalytic Converter Outlet Diameter | 2.5 |
| Catalytic Converter Overall Length | 25.2 |
| Catalytic Converter Oxygen Sensor Location | Pre Converter |
| Catalytic Converter Substrate Material | Ceramic |
| Catalytic Converter Width | 6 |
| Clamps Included | No |
| Components | Bolt=2;Gasket=2;Nut=2;Washer=2 |
| Converter Body Length | 12 |
| Converter Body Material | Stainless Steel |
| Converter Body Size | OEM |
| Converter Quantity | 1 |
| Core Substrate Material | Ceramic |
| Country of Origin (Primary) | US |
| Emission | Non-California (49-State) |
| Emission Code | Not in CA |
| Exhaust Component Mount Type | Uses Factory Hangers |
| Exhaust Pipe Material | Stainless Steel |
| Finish | Stainless Steel, Stainless Steel |
| Grade Type | Regular |
| Harmonized Tariff Code (Schedule B) | 8421320000 |
| Hazardous Material Code | N |
| Heat Shield Attached | Yes |
| Heat Shield Included | Yes |
| Inlet Attachment Type | Bolt-On |
| Inlet Diameter | 2.500 in. |
| Inlet Gasket Included | Yes |
| Inlet Inside Diameter | 2.500 in. |
| Inlet Inside Diameter (in.) | 2.5 |
| Inlet Mounting Hardware Included | No |
| Inlet Size (in.) | 2.5 |
| Inlet Type | Bolt-On, Flanged |
| Life Cycle Status Code | Available to Order |
| Main Piping Diameter | 2.500 in. |
| Main Piping Diameter (in.) | 2.5 |
| Material | Stainless Steel, Stainless Steel |
| Mounting Hardware Included | Yes |
| NAFTA Preference Criterion Code | B |
| New York Certified | No |
| Outlet Diameter | 2.500 in. |
| Outlet Gasket Included | Yes, Yes |
| Outlet Mounting Hardware Included | Yes, Yes |
| Outlet Outside Diameter | 2.500 in. |
| Outlet Outside Diameter (in.) | 2.5 |
| Outlet Quantity | 1 |
| Outlet Size (in.) | 2.5 |
| Outlet Type | Flanged, Flanged |
| Overall Length | 25.200 in., 25.125 |
| Overall Length (in.) | 25.200 in. |
| Oversize Shipping | 841380094292 |
| Oxygen Sensor Location | Pre Converter |
| Recommended Use | Converter |
| SDR Required Flag | N |
| Sensor Port Count | 1, 1 |
| Series | OEM Grade, OEM Grade |
| Substrate Material | Ceramic, Ceramic |
| Subtitle | Federal / EPA Compliant |
| Subtitles | Federal / EPA Compliant |
| Type | Direct-Fit, One-Piece |
| Universal of Specific Fit | Specific |
| Warranty Time | 5 |
| GTIN | 00841380094292 |
